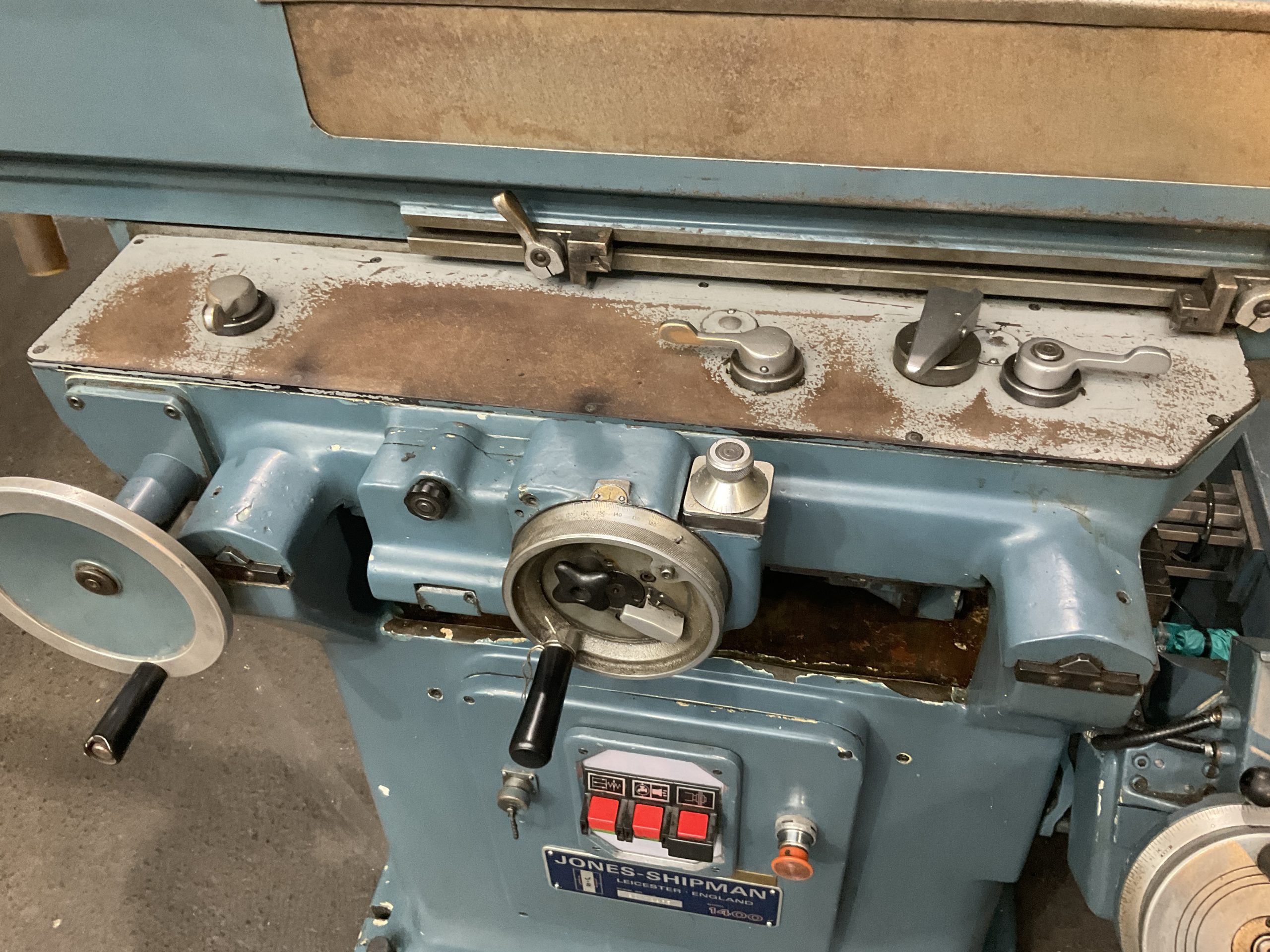

JONES & SHIPMAN 1400 HORIZONTAL SURFACE GRINDER

More Photos:

TABLE

Working surface of table 24” x 7” 610 x 178mm

Longitudinal traverse of table, hand and hydraulic 25” 635 mm

Total cross traverse of table, hand and hydraulic 8” 203 mm

Floor to table height 39 ¾” 1010 mm

FEEDS

Table traverse speed range per min. 10 to 70 ft. 3 to 21 m

Cross feed range per stroke at each reversal 0.007” to 0.07” 0,178 to 1,78 mm

Micrometer cross feed graduated in 0,002 mm

Vertical feed adjustment in increments of 0,001 mm

 WHEELHEAD

Vertical movement of wheelhead (max.) 11” 279 mm

Wheel spindle centre to table (min.) 3 ¼” 83 mm

Size of grinding wheel 200 x 20 x 31,75 mm

Speed of wheel 1192 and 2384 rpm

 MOTORS

Wheelhead motor 2 hp 1,5 kW

Hydraulic pump motor 2 hp 1,5 kW

Machine complete with :-

 Light & Coolant.
