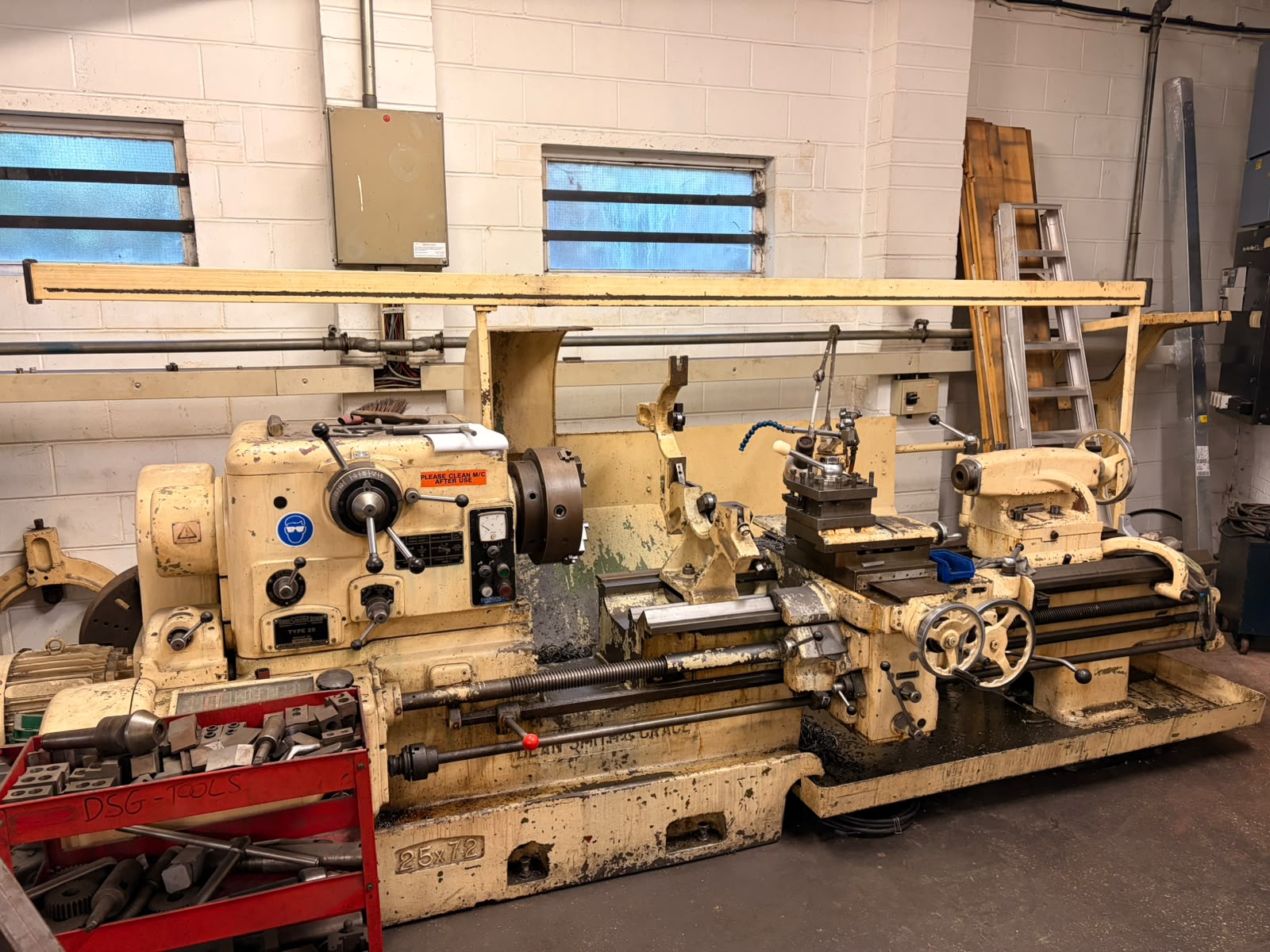

Dean Smith & Grace Type 25 x 72 Heavy duty Centre Lathe

More Photos:

Swing over bed ……………………………25″ – 635mm

Swing in the Gap………………………… 40 “x 12″ – 1168 mm x 318 mm

Swing over the cross Slide…………… 16″ – 406 mm

Distance between Centres …………… 72″ – 1830 mm

Spindle Bore……………………………….4 1/2” – 105 mm

Spindle Speeds …………………………..7.4 – 600 rpm.

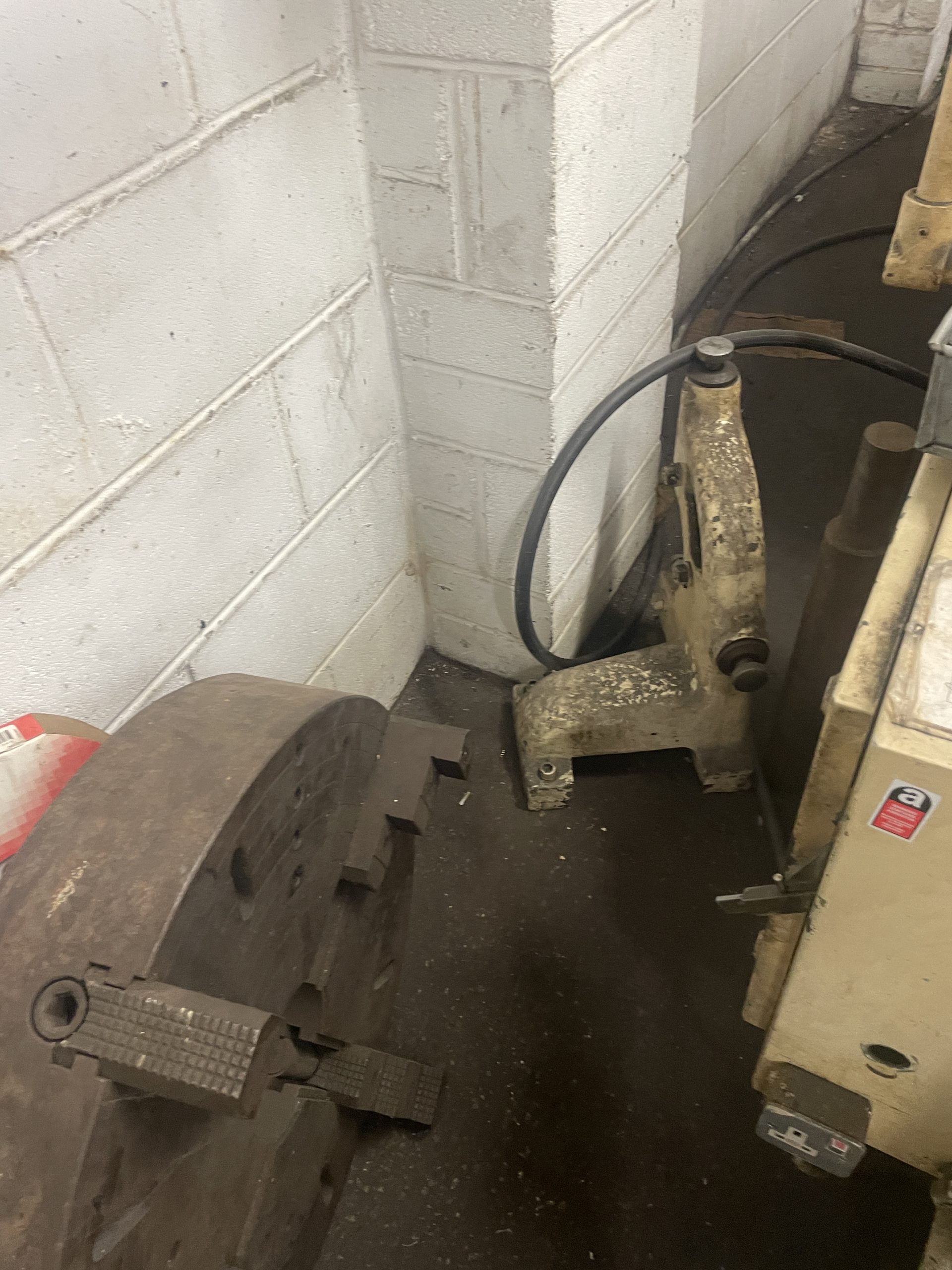

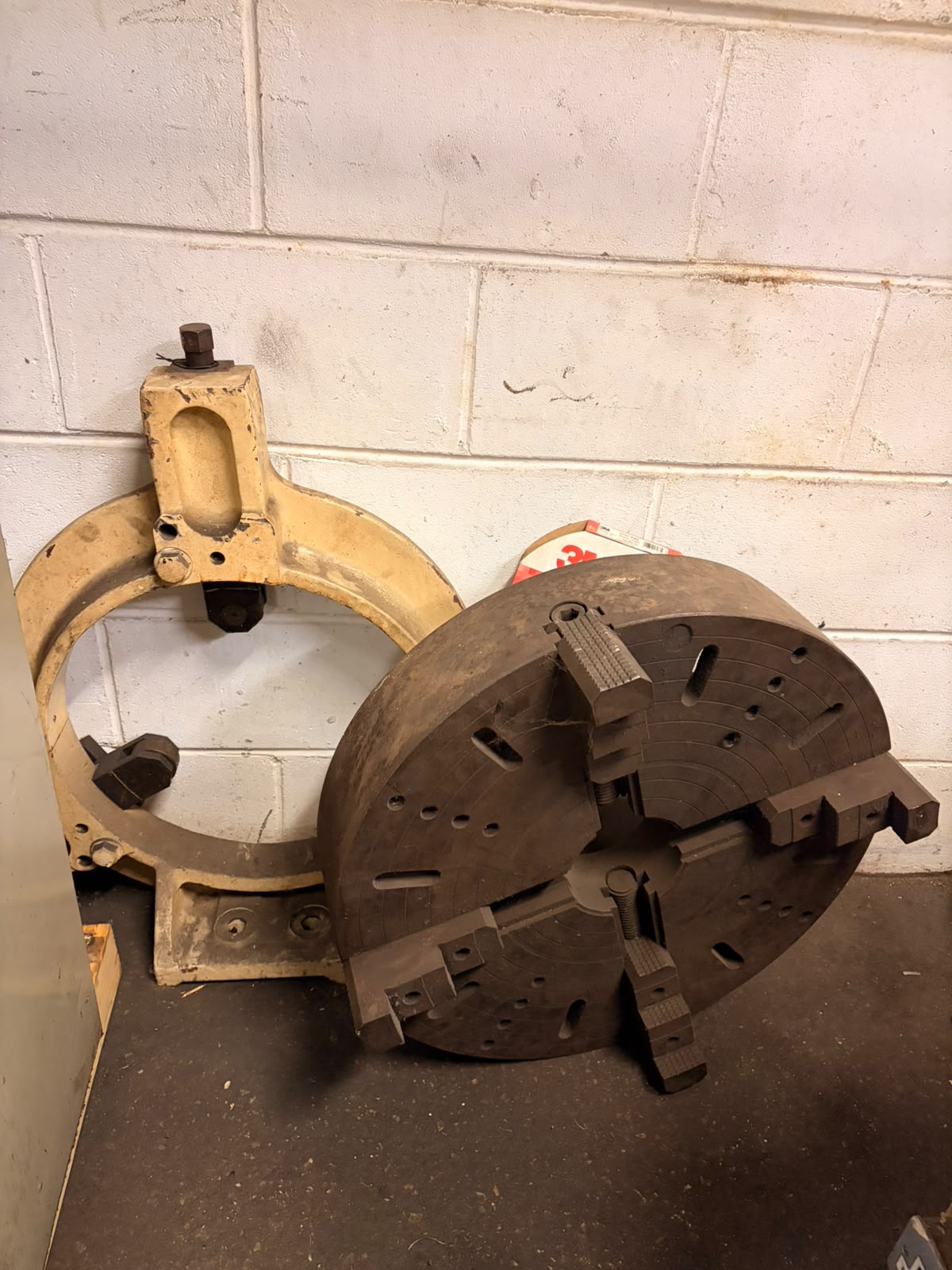

C/w 3 & 4 jaw Chucks, 2 x Fixed steadies &  one travelling steady, Drilling Attachment, over head Guard & coolant.
