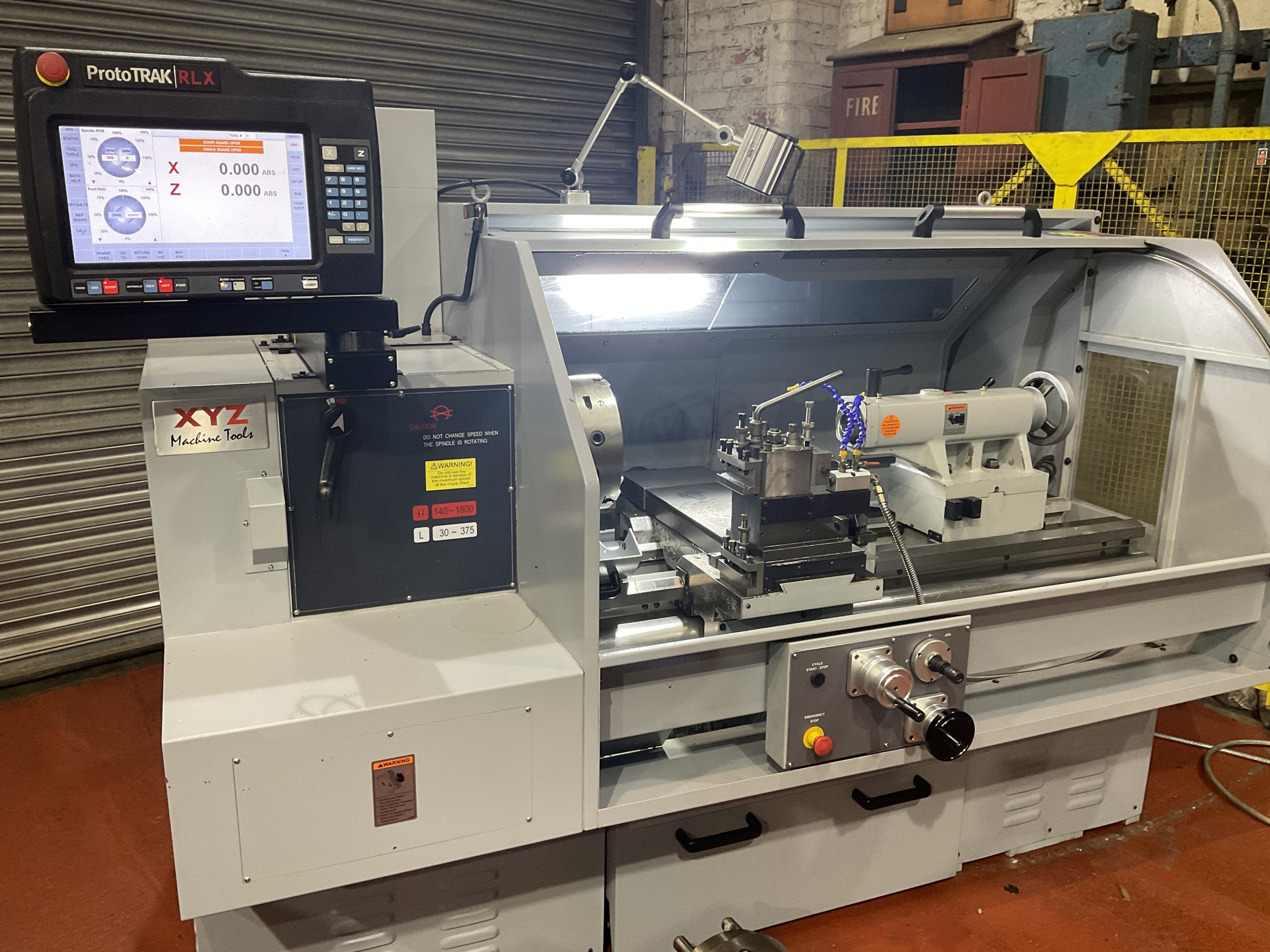

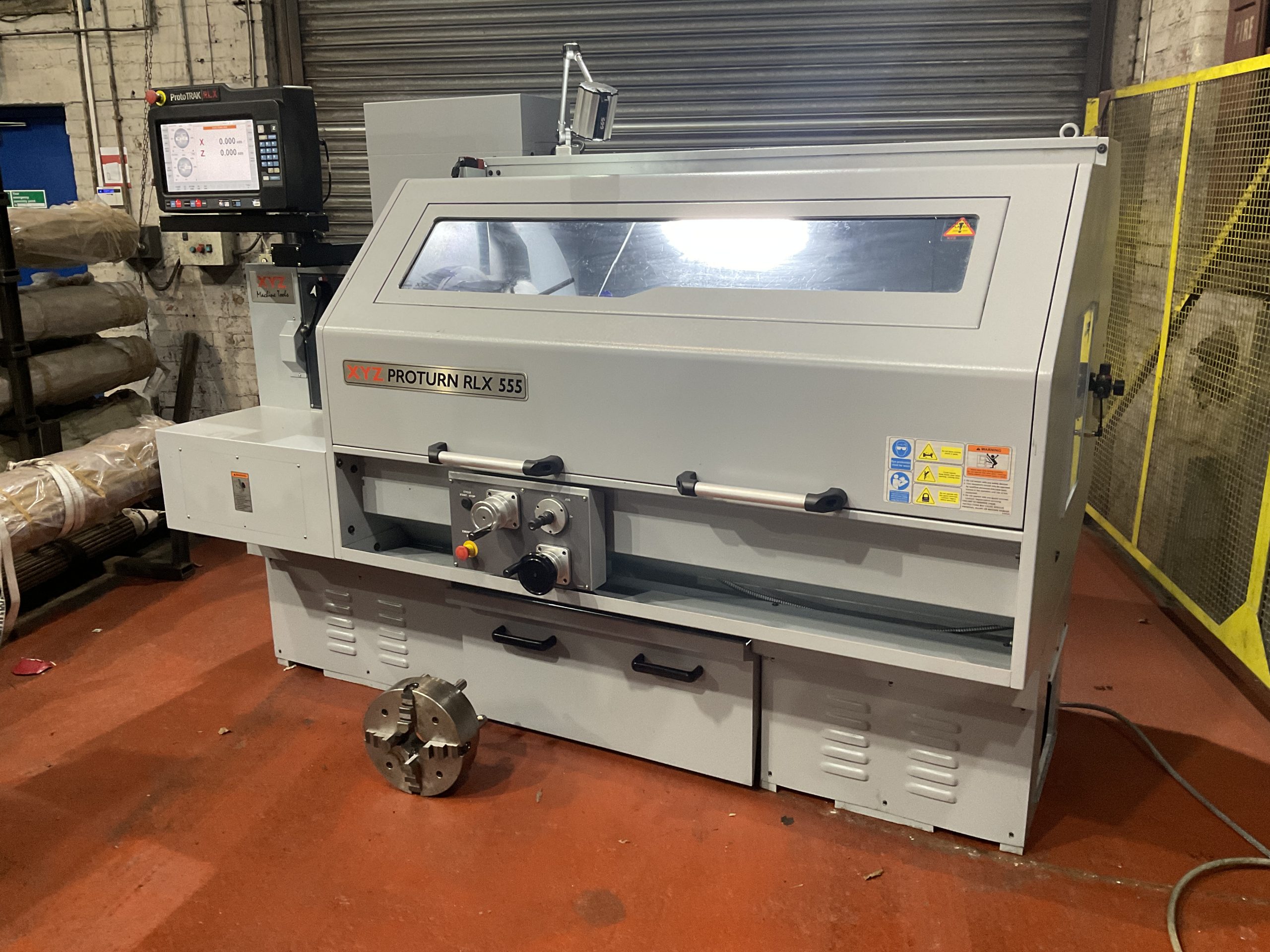

XYZ PROTURN RLX 555 Gap Bed Centre Lathe

More Photos:

New 2020,

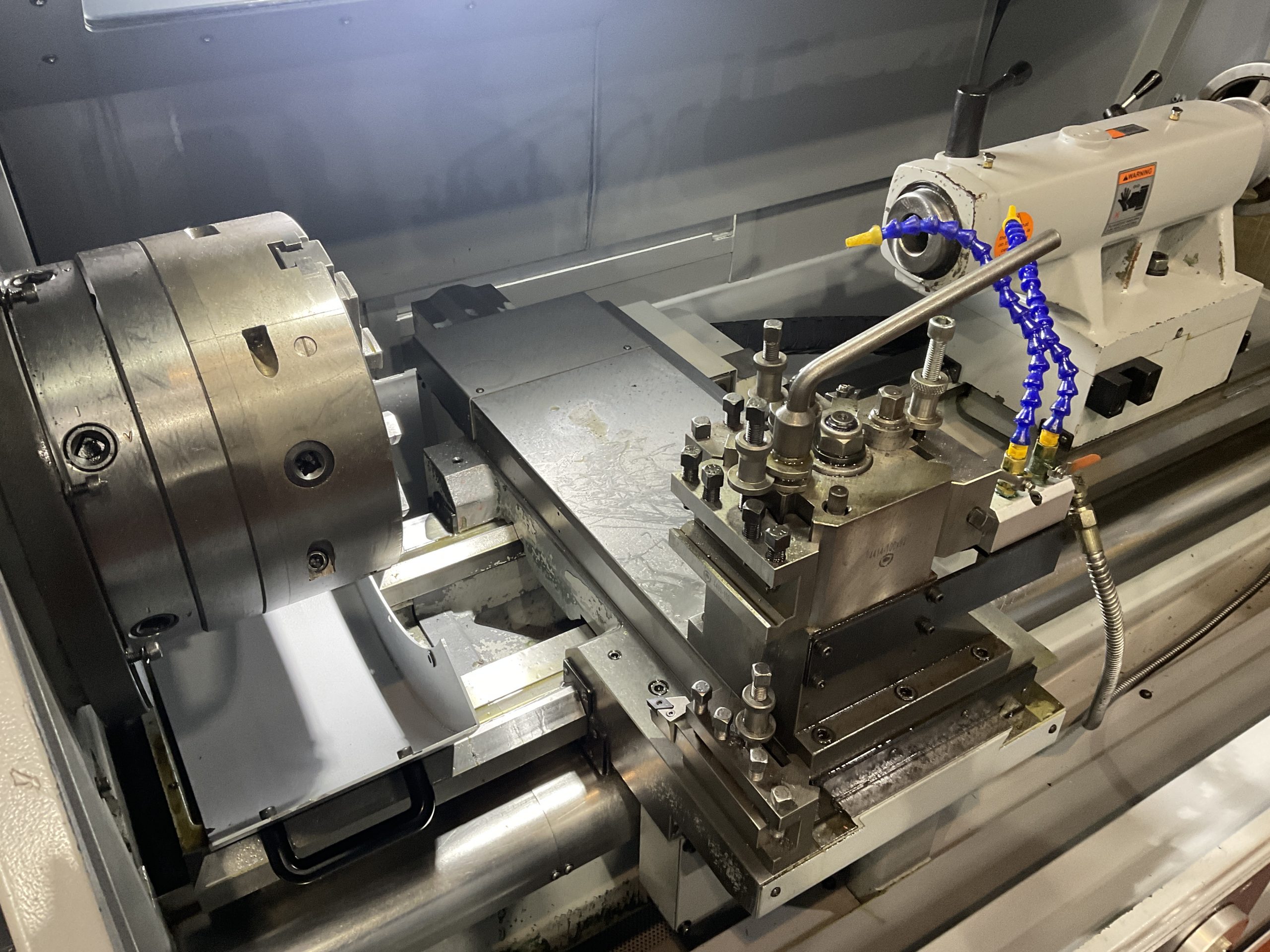

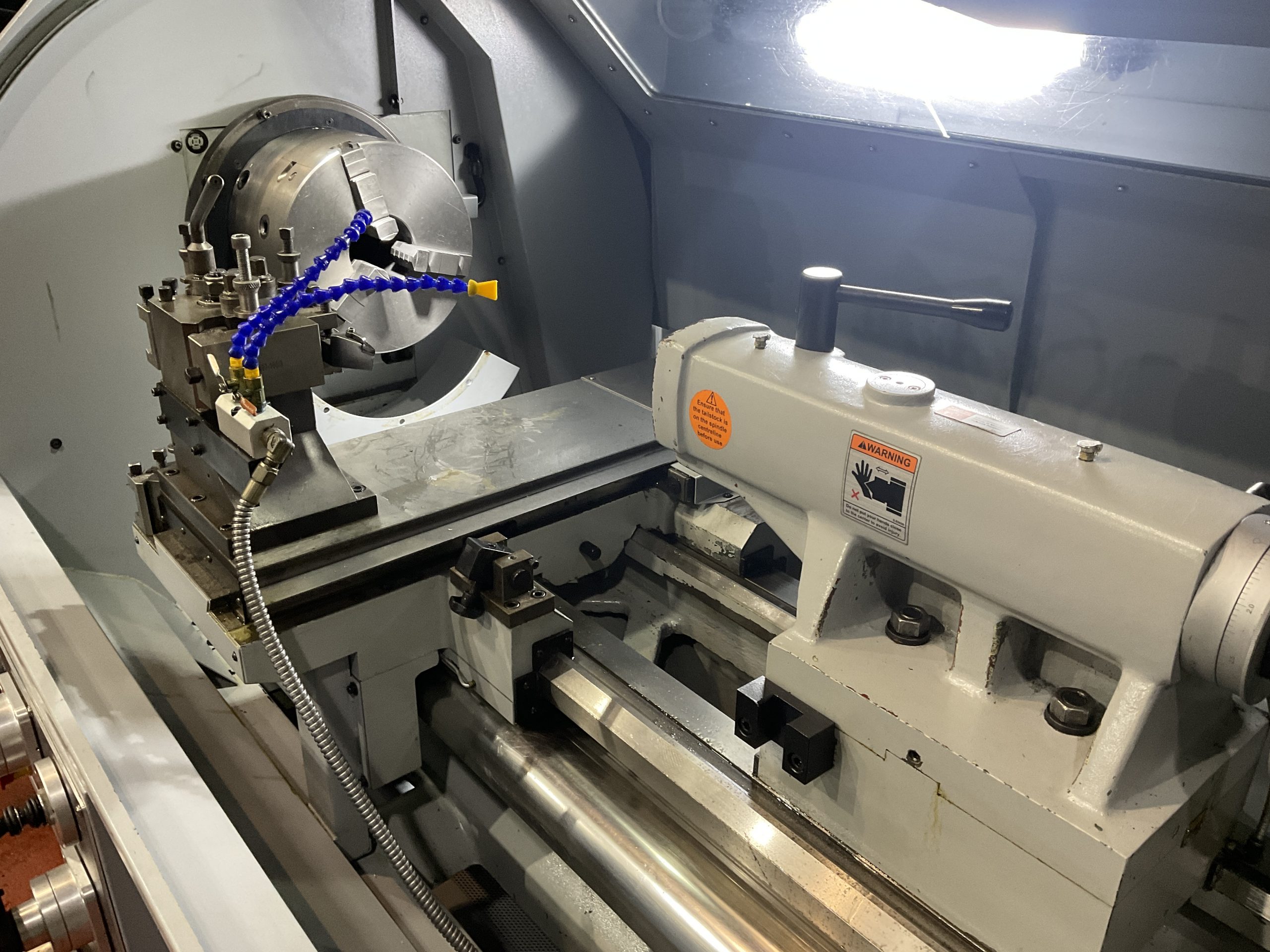

3 Jaw Chuck, Coolant, Drill Holder Attachment, Interlocked guards, Low Volt Light, Quick Change Tool-post, Tailstock

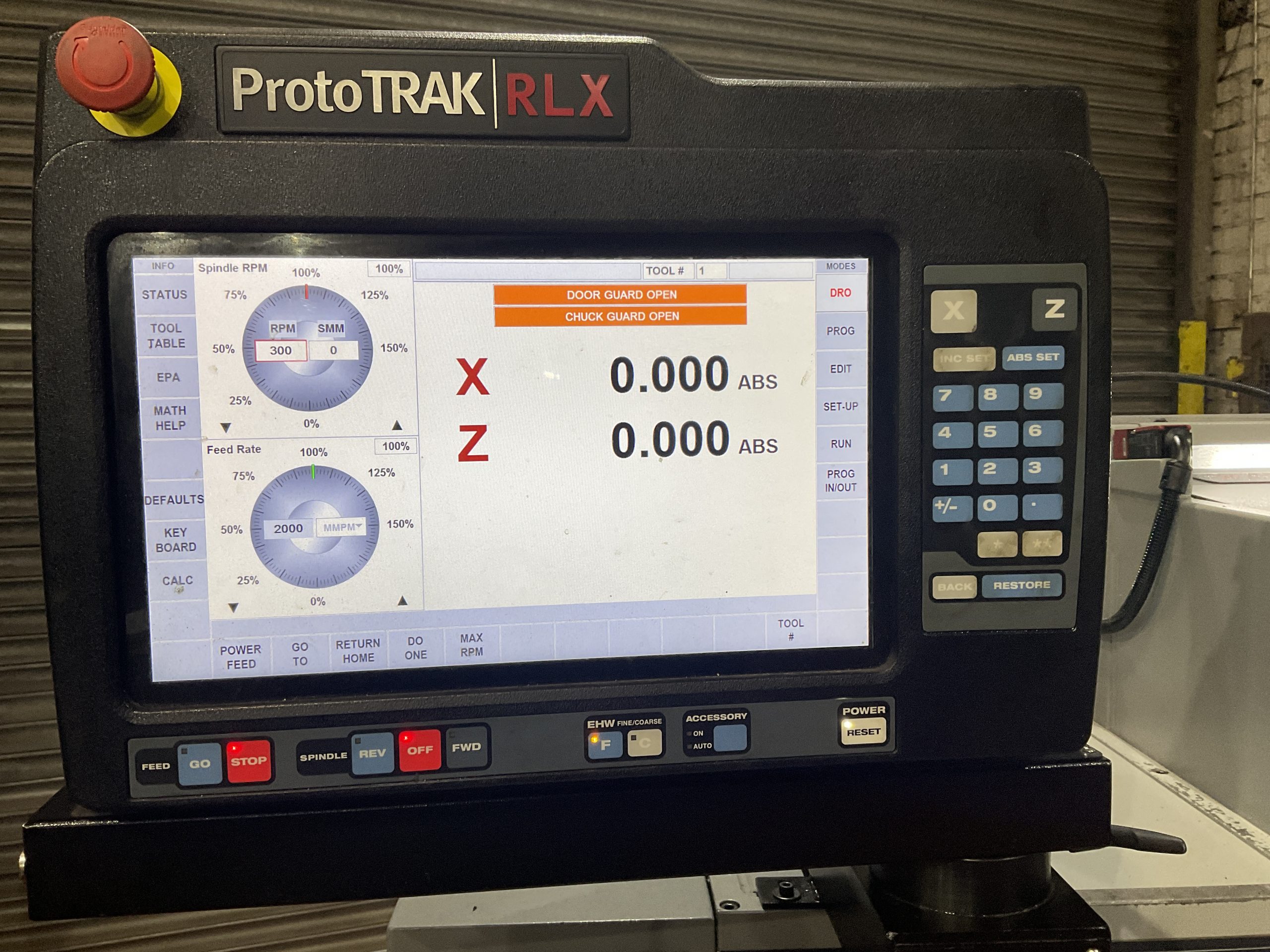

Control Prototrak RLX

Distance Between Centres 1000mm

Machine Dimensions 2525 x 1589 x 1920 mm

Machine Weight 3200kg

Maximum Cutting Length 1650mm

Spindle Bore 104mm

Spindle Motor Power 11.2kW

Spindle Nose D1-11

Spindle Speed 30 ~ 1800rpm

Swing 560mm

Swing in the Gap 780mm

Swing over the Cross-slide 350mm

Tailstock Quill Diameter 90mm

Tailstock Quill Stroke 160mm

Tailstock Taper MT #5
